SEASTAR CC230 STANDARD CONTROL CABLE - 6FT ~ 24FT
SEASTAR CC230 STANDARD CONTROL CABLE - 6FT ~ 24FT
Replaces CC172 Control Cables

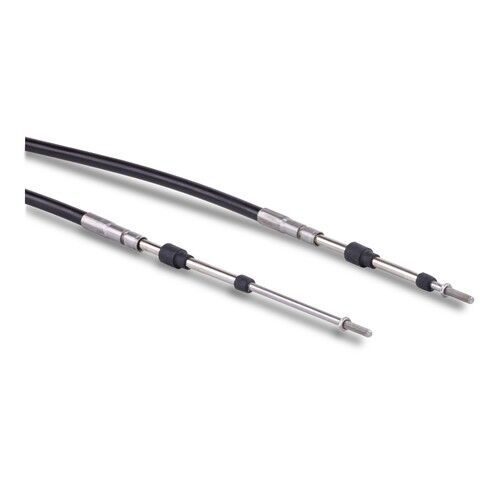

This control cable is compatible with Dometic Seastar® controls and any other systems designed for universal type cables. It features stainless steel end fittings with 10-32 UNF threads and offers a nominal travel distance of 75mm. The cable includes a stainless steel Lubri-core™ solid core wire and a 16-lay wire reinforced outer jacket measuring 6.8mm in diameter. It has a minimum bend radius of 150mm and is suitable for use with stern drives, inboards, and outboards.
| Code | Cable Meters | Length Feet | ||
|---|---|---|---|---|
| 303006 | 1.83 | 6 | ||
| 303007 | 2.13 | 7 | ||
| 303008 | 2.44 | 8 | ||
| 303009 | 2.74 | 9 | ||
| 303010 | 3.05 | 10 | ||
| 303011 | 3.35 | 11 | ||
| 303012 | 3.66 | 12 | ||
| 303013 | 3.96 | 13 | ||
| 303014 | 4.27 | 14 | ||
| 303015 | 4.57 | 15 | ||
| 303016 | 4.88 | 16 | ||
| 303017 | 5.18 | 17 | ||
| 303018 | 5.49 | 18 | ||
| 303019 | 5.76 | 19 | ||
| 303020 | 6.1 | 20 | ||
| 303021 | 6.4 | 21 | ||
| 303022 | 6.71 | 22 | ||
| 303023 | 7.01 | 23 | ||
| 303024 | 7.32 | 24 |
